Code: MT551

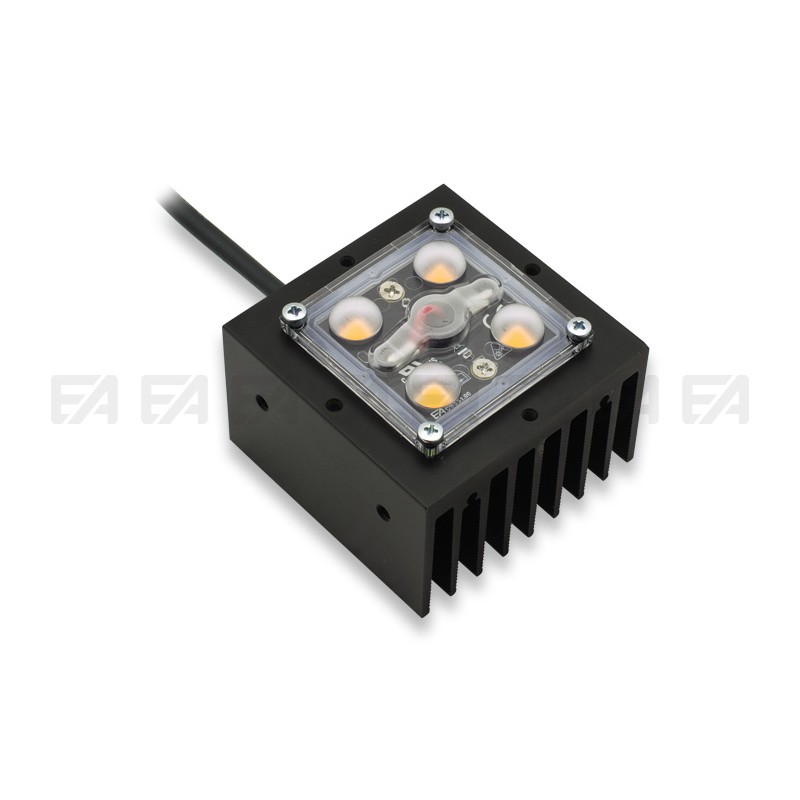

LED module MT551
Constant current LED module, available in two versions:- max 800mA / 25.3V (code X1)- max 1600mA / 12.6V (code X2)Max power 20.2W, 68 x 68 mm, h 49.8 mm.
Code: CTT436
Touch dimmer CTT436
Touch dimmer for 12-24Vdc constant voltage LED strips and LED boards.
Code: CTC445CXX
Electronic control board CTC445CXX
Electronic control board with function of:- battery charger- capacitive dimmer metal touch- constant current output, max 2.5W, for PCB LED boards
Code: NNR25P
LED tube NNR25P
Flexible silicone LED tube, 24vdc, max 20W/m, Ø 25 mm, supplied in a 5-meters reel.High luminous efficiency, high light transmission and uniform distribution without shadows at 360.Protection level IP65.
LED module MT551
Constant current LED module, available in two versions:
- max 800mA / 25.3V (code X1)
- max 1600mA / 12.6V (code X2)
Max power 20.2W, 68 x 68 mm, h 49.8 mm.
Important:
Always indicate the article code
Description
Constant current LED module, available in two versions:
- max 800mA / 25.3V (code X1)
- max 1600mA / 12.6V (code X2)
Max power 20.2W, 68 x 68 mm, h 49.8 mm.
4 BRIDGELUX® LEDs 5050.
Assembled with: aluminium heatsink, PC 4-positions lens, push-wire connectors, cable 05RN-F 2x0.75 mm2 (length on request), cable clamp for back cable exit, metal brackets for fixing.
Dimmable with standard driver with Dali, Triac, Push, 0-10V, 1-10V technology.
Degree of protection IP66.
Other cable, type and length, to be chosen when ordering.
On request it is possible to produce the LED module with color temperatures from 2200K to 6500K
Product Details
MT551
Constant current LED module, available in two versions:
- max 800mA / 25.3V (code X1)
- max 1600mA / 12.6V (code X2)
Max power 20.2W, 68 x 68 mm, h 49.8 mm.
