Code: MF526
LED module MF526
Constant current LED Module for relamping.27.3~61.7W - 120 x 120 mm, h 15.1 mm.
Code: MT551
LED module MT551
Constant current LED module for relamping, available in two versions:- max 800mA / 25.3V (code X1)- max 1600mA / 12.6V (code X2)Max power 20.2W, 68 x 68 mm, h 52.5 mm.
Code: MF551
LED module MF551
Constant current LED module for relamping, available in two versions:- max 800mA / 25.3V (code X1)- max 1600mA / 12.6V (code X2)Max power 20.2W, 68 x 68 mm, h 18 mm.
Code: CTT436
Touch dimmer CTT436
Touch dimmer for 12-24Vdc constant voltage LED strips and LED boards.

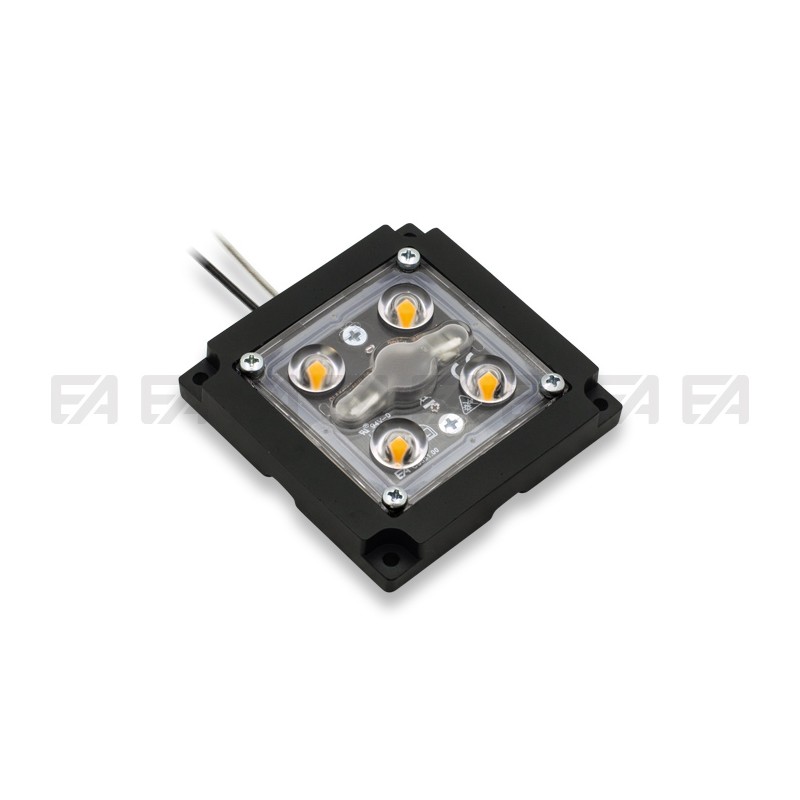

LED module MF551
Constant current LED module for relamping, available in two versions:
- max 800mA / 25.3V (code X1)
- max 1600mA / 12.6V (code X2)
Max power 20.2W, 68 x 68 mm, h 18 mm.
Important:
Always indicate the article code
Description
Constant current LED module for relamping, available in two versions:
- max 800mA / 25.3V (code X1)
- max 1600mA / 12.6V (code X2)
Max power 20.2W, 68 x 68 mm, h 18 mm.
4 BRIDGELUX® LEDs 5050.
Assembled with: PCB LED board CL551, aluminium heatsink, PC 4-positions lens, push-wire connectors, cable FEP-FEP T180°C - AWG20 double insulation (length on request).
Dimmable with standard driver with Dali, Triac, Push, 0-10V, 1-10V technology.
Degree of protection IP66.
Other cable, type and length, to be chosen when ordering.
On request it is possible to produce the LED module with color temperatures from 2200K to 6500K
Product Details
MF551
Constant current LED module for relamping, available in two versions:
- max 800mA / 25.3V (code X1)
- max 1600mA / 12.6V (code X2)
Max power 20.2W, 68 x 68 mm, h 18 mm.
