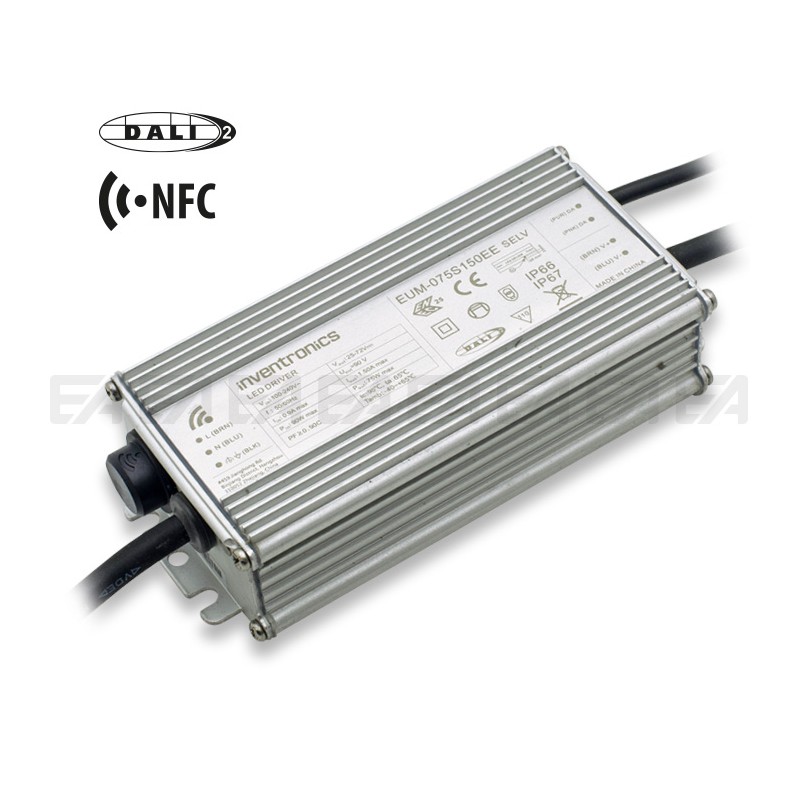

LED driver IN-EUM-075S150EE
Waterproof LED Driver, DALI-2 Dimmable, NFC Programmable.
105~1500mA, 25~72V, maximum power 75W.
Important:
Always indicate the article code
Description
Waterproof LED driver, DALI-2 dimmable, NFC programmable output current.
105~1500mA, 25~72V, maximum power 75W.
IP66 and IP67 protection.
Input voltage 100~277V (50/60Hz).
Complete with IN/OUT cables (lengths shown on the data sheet).
Product Details
IN-EUM-075S150EE
Waterproof LED Driver, DALI-2 Dimmable, NFC Programmable.
105~1500mA, 25~72V, maximum power 75W.
