Description

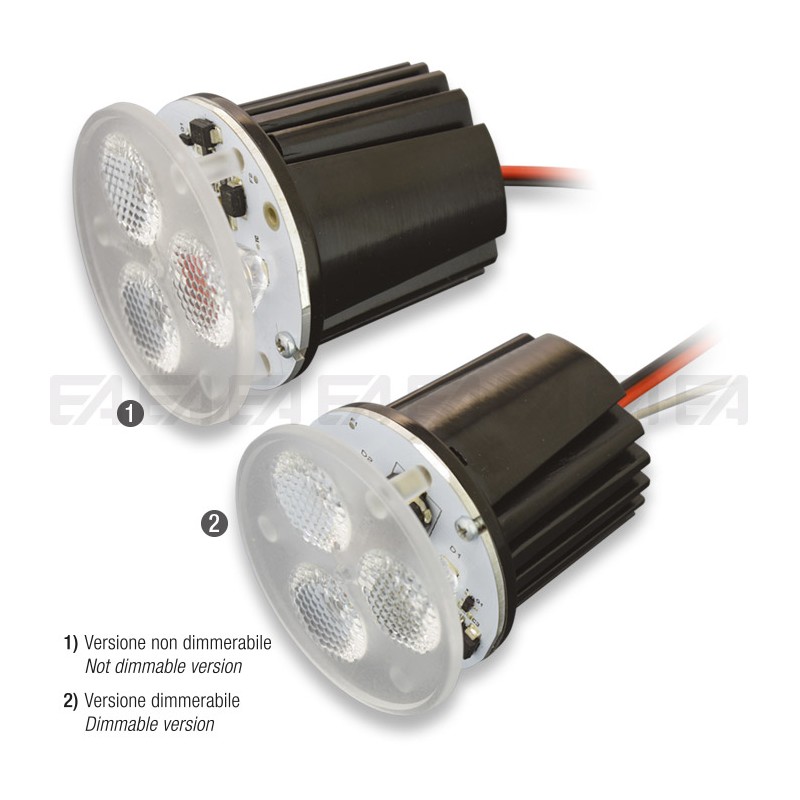

Constant voltage LED module, 12~24Vdc.
3~7W - Ø 50 mm - h 52 mm.
3 SEOUL® LEDs Z5M4.
LED module for different powers available on request.
Dimming 0-100% PWM function type available.
Supplied with: CL012 LED board, PMMA lens Ø 50 mm, aluminum heatsink, divisible flat cable 2x0.35 PVC Red/Black color, transparent dimming cable only in the dimmable version, central back cable exit.
Other cables, type and lengths, to be chosen when ordering.
Product Details
TR50X-CV
