Code: MT467
LED module MT467
Constant current LED Module for relamping.24.2~60.5W - 200 x 71.4 mm, h 48.7 mm.
- PCB LED boards
- LED modules
- Relamping Modules
- LED strips and aluminium profiles
- Flexible LED Tubes
- Control electronics
- QUICK-LED system
- LED drivers and LED power supplies
- Lenses, protection covers and collimators
- Thermal PADs
- Cooling systems
- Cables and accessories
- LED bulbs
- LED technical information
- Lampholders and accessories
- Plastic accessories
- Examples of lampholders application
- Reserved area
Code: MT526
LED module MT526
Constant current LED Module for relamping.27.3~61.7W - 120 x 120 mm, h 15.1 mm.
Code: MT551
LED module MT551
Constant current LED module for relamping, available in two versions:- max 800mA / 25.3V (code X1)- max 1600mA / 12.6V (code X2)Max power 20.2W, 68 x 68 mm, h 49.8 mm.
Code: CTT436
Touch dimmer CTT436
Touch dimmer for 12-24Vdc constant voltage LED strips and LED boards.
Code: CTC445CXX
Electronic control board CTC445CXX
Electronic control board with function of:- battery charger- capacitive dimmer metal touch- constant current output, max 2.5W, for PCB LED boards
Description

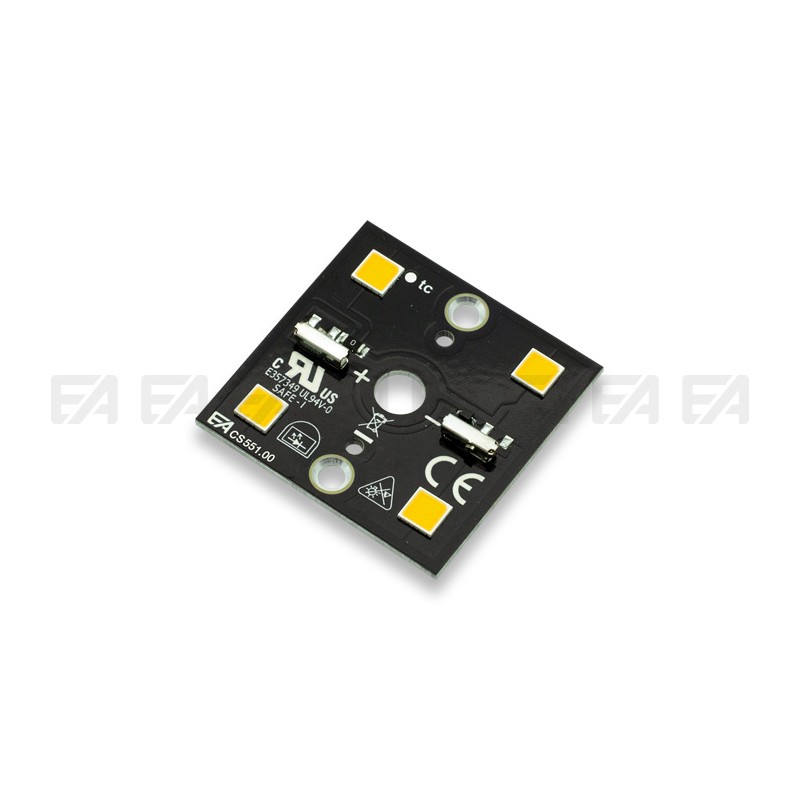

Constant current LED board, available in two versions:
- max 800mA / 25.3V (code X1)
- max 1600mA / 12.6V (code X2)
Max power 20.2W, 38 x 38 mm, h 4.3 mm.
4 BRIDGELUX® LEDs 5050.
Dimmable with standard driver with Dali, Triac, Push, 0-10V, 1-10V technology.
With push-wire connectors for snap-in fixing of cables.
Cable, type and length, to be chosen when ordering.
On request it is possible to produce the LED board with different powers up to a maximum of 12W and with color temperatures up to 6500K.
Product Details
CL551-XV
