Code: MT467
LED module MT467
Constant current LED Module for relamping.24.2~60.5W - 200 x 71.4 mm, h 48.7 mm.
- PCB LED boards
- LED modules
- Relamping Modules
- LED strips and aluminium profiles
- Flexible LED Tubes
- Control electronics
- QUICK-LED system
- LED drivers and LED power supplies
- Lenses, protection covers and collimators
- Thermal PADs
- Cooling systems
- Cables and accessories
- LED bulbs
- LED technical information
- Lampholders and accessories
- Plastic accessories
- Examples of lampholders application
- Reserved area
Code: MF526
LED module MF526
Constant current LED Module for relamping.27.3~61.7W - 120 x 120 mm, h 15.1 mm.

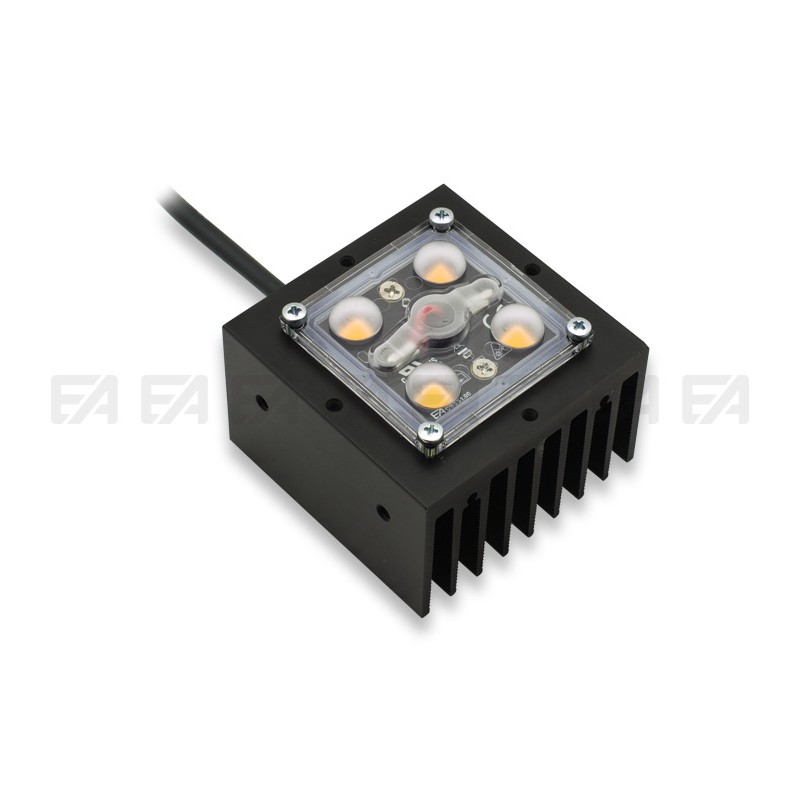

Code: MT551
LED module MT551
Constant current LED module for relamping, available in two versions:- max 800mA / 25.3V (code X1)- max 1600mA / 12.6V (code X2)Max power 20.2W, 68 x 68 mm, h 49.8 mm.
Code: CTT436
Touch dimmer CTT436
Touch dimmer for 12-24Vdc constant voltage LED strips and LED boards.
Code: CTC445CXX
Electronic control board CTC445CXX
Electronic control board with function of:- battery charger- capacitive dimmer metal touch- constant current output, max 2.5W, for PCB LED boards
Description
Constant voltage LED module for relamping.
24Vdc, max power 12W, 68 x 68 mm, h 49.8 mm.
4 BRIDGELUX® LEDs 5050.
Assembled with: PCB LED board CL551, aluminium heatsink, PC 4-positions lens, push-wire connectors, cable 05RN-F 2x0.75 mm2 (length on request), cable clamp for back cable exit, metal brackets for fixing.
Dimmable with standard power supply with Dali, Triac, Push, 0-10V, 1-10V technology.
Degree of protection IP66.
Other cable, type and length, to be chosen when ordering.
On request it is possible to produce the LED module with different powers up to a maximum of 12W and with color temperatures up to 6500K.
Product Details
MT551-XV
