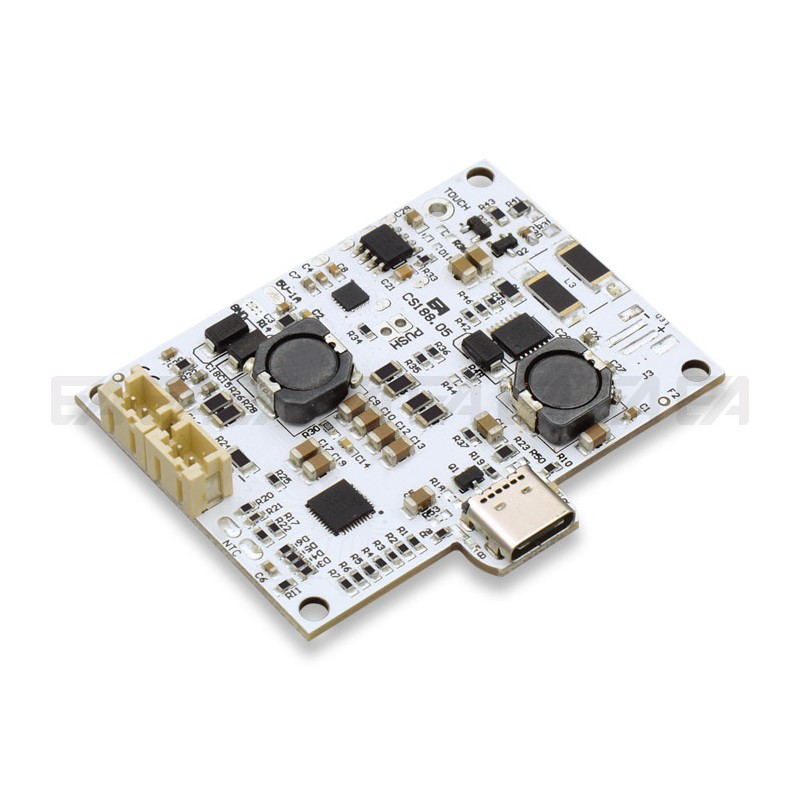

Electronic control board CTC011A

CTC011A

Electronic control board with function of:
- battery charger
- mobile phone charging
- capacitive dimmer metal touch
- constant current output, max 6.5W, for PCB LED boards

dimmer, cv input, cc output, mobile phone charging, USB Type-C


DATASHEET

ACCESSORIES DATASHEET

REQUEST INFO
Important:
Always indicate the article code
Description

Electronic control board with function of:
- battery charger
- mobile phone charging
- capacitive dimmer metal touch
- constant current output, max 6.5W, for PCB LED boards
Battery fully charged (the electronic control board can work only with two batteries) after approx. 5 hours.
Available with firmware types and functions shown in the table of the data sheet, other customizations on request.
USB Type-C input, connectors for battery connection, integrated blue and red LED status indication.
Note: A minimum voltage of 5V is always present at the output.

Accessories to be chosen when ordering:
- Wall mount power supply 5V – 3A – 15W
- USB Type-A/Type-C cable
- USB Type-A/DC-plug cable
- Rechargeable Li-ion batteries complete with cm 20 cable and plug connectors
- Plastic battery holder
- USB Type-A remote connector for mobile phone charging
- USB Type-C remote power connector
- Female DC-plug remote power connector

Product Details
CTC011A
