Reference: DMPL

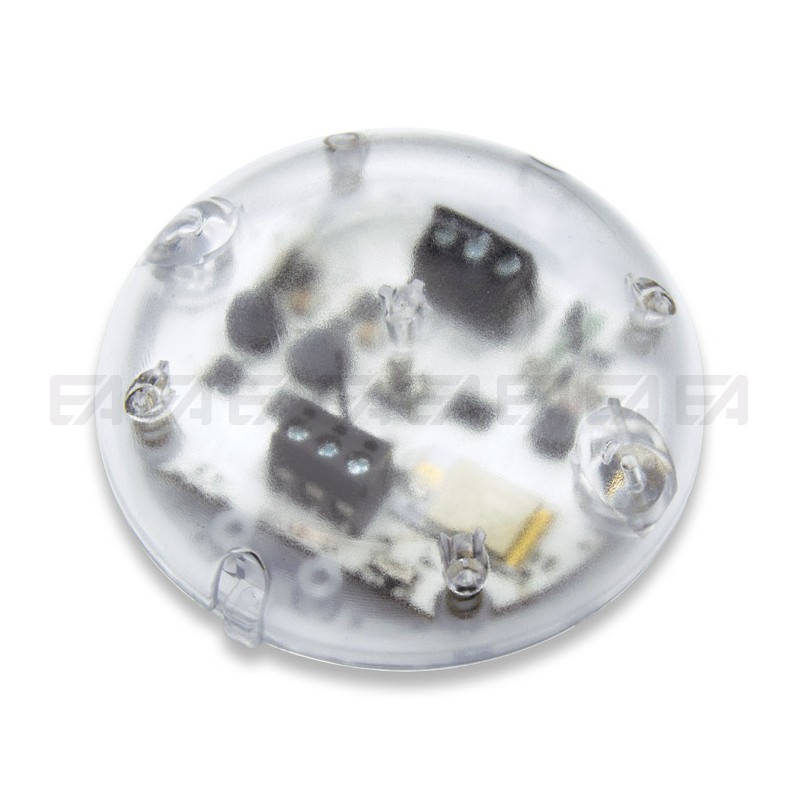

Electronic dimmer DMPL
Multifunction electronic floor dimmer for constant current and constant voltage LED modules.12Vdc to 48Vdc input, DC+CC output, 1 or 2-channel output selectable by switch.For floor light sources.Available versions: DC+CC / DCAlso available in version with integrated CASAMBI® module for managing the dimmer with APP, for the creation of scenarios and color...
Electronic dimmer DMPL
Multifunction electronic floor dimmer for constant current and constant voltage LED modules.
12Vdc to 48Vdc input, DC+CC output, 1 or 2-channel output selectable by switch.
For floor light sources.
Available versions: DC+CC / DC
Also available in version with integrated CASAMBI® module for managing the dimmer with APP, for the creation of scenarios and color games.
Description
Multifunction electronic floor dimmer for constant current and constant voltage LED modules.
12Vdc to 48Vdc input, DC+CC output, 1 or 2-channel output selectable by switch.
For floor light sources.
Available versions:
• DC+CC: by way of a switch it is possible to select and manage loads in constant voltage or constant current on 1 or 2 channels. On CC mode, through a dip-switch it is possible to select different levels of constant output current.
• DC: 1 or 2 channel output selectable by switch, for constant voltage LED circuits.
Also available in version with integrated CASAMBI® module for managing the dimmer with APP, for the creation of scenarios and color games.
With base and cover transparent.
Supplied without power cables In/Out (type and length to be chosen when ordering).
Factory settings: CC - 350mA (see datasheet).
Product Details
DMPL
Multifunction electronic floor dimmer for constant current and constant voltage LED modules.
12Vdc to 48Vdc input, DC+CC output, 1 or 2-channel output selectable by switch.
For floor light sources.
Available versions: DC+CC / DC
Also available in version with integrated CASAMBI® module for managing the dimmer with APP, for the creation of scenarios and color games.
